Sectional Filters

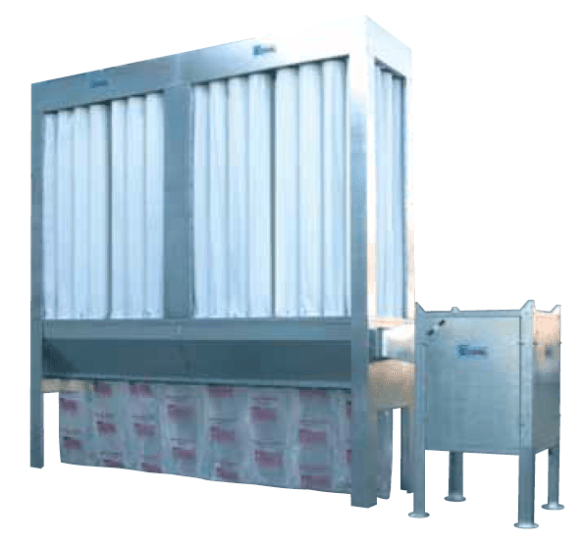

The ‘FM’ is the most simple and cheapest filtration units with large filtering surface and high air delivery.  Manufactured in galvanized panels for extra life-resistance, they are easily assembled in modular versions of 1/2/3/4/5 metres. Since the FM’s are shipped in knockdown form, significant savings are achieved on transport costs.

The FM’s is designed with a compact footprint with a view to keep dimension small compared to the large filtering surface. The high number of sleeves and highly permeable needle polyester felt used improves the filtering efficiency as well as reducing pressure loss compared to traditional fabrics such as cotton.

  • The flow of air through the sleeves from top to bottom, improves the decanting of the heavier dust in the collecting bags while the lighter dust is trapped by the filter.
  • Type ‘A’ needle felt (270grams/m2) is supplied as standard
  • Type ‘B’ needle felt (270grams/m2) is optional for fine powder dusts generated form Sanding machines.

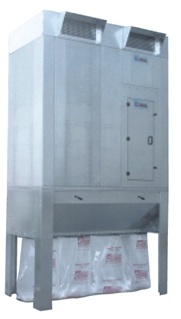

  • Maintenance door, air-flow detector, top air entry, support stands for ventilators, covered panels

  •  Models              Air Flow              Filter Surface      Collecting Bags    Height x Width x Depth
  • FM 2/RA             4812 m3/hr            34 m2                 4 bags               3600 x 2200 x 1090 mm
  • FM 2/NA             6360 m3/hr           45 m2                 4 bags               4100 x 2200 x 1090 mm
  • FM 2/HA             7907 m3/hr          56 m2                 4 bags               4600 x 2200 x 1090 mm
  • FM 3/RA             7219 m3/hr           52 m2                  6 bags               3600 x 2200 x 1090 mm
  • FM 3/NA             9540 m3/hr           68 m2                 6 bags               4100 x 3300 x 1090 mm
  • FM 3/HA             11861 m3/hr          85 m2                 6 bags               4100 x 2200 x 1090 mm
  • FM 4/RA             9625 m3/hr            69 m2                 8 bags               3600 x 4400 x 1090 mm
  • FM 4/NA             12720 m3/hr         91 m2                 8 bags               4100 x 4400 x 1090 mm
  • FM 4/HA             15814 m3/hr         113 m2                8 bags              4600 x 2200 x 1090 mm
  • FM 5/NA             15260 m3/hr         109 m2              10 bags            4100 x 5500 x 1090 mm
  • FM 5/FA             19460 m3/hr         139 m2               10 bags            4600 x 2200 x 1090 mm
  • *Sleeves Height: (R)1500mm, (N)2000mm, (H)2500mm
  • Optional Features
  • Wheels galvanized sheet collecting bins
  • Rain protection for external positional of the FM
  • Fire Dampers
  • Certified explosion relief panel
  • Fire extinguisher system
  • Spark detector system
  • Control board
  • Noise reduction box for fan
  • Maintenance door roof
